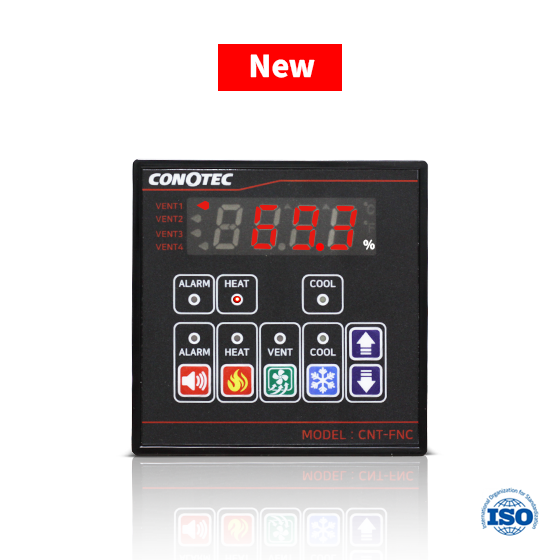

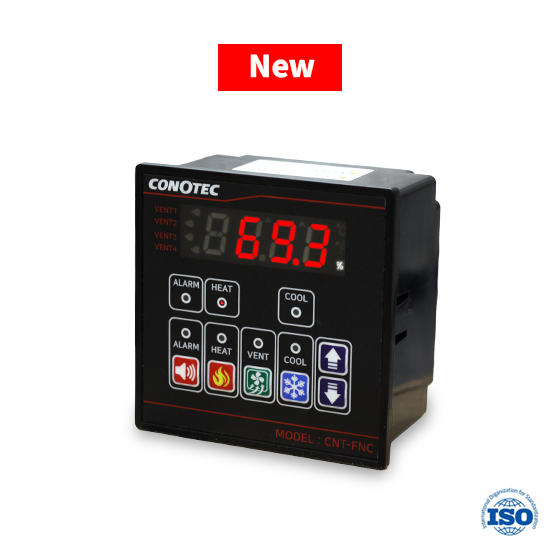

CNT-FNC
· Fan Controller
Features
> Temp. & Humi. Detect and Control
> Ventilation Fan Control: Built-in 4-stage relay outputs
> Cooling / Heating Control: 1 relay output
> Spray / Mist Control: 1 relay output
> Alarm Output: 1 relay output
Product Data
Specification
Size(mm) | 97 (W) x 97 (H) x 48 (D) |
Operating Range | -55.0 ~ 99.9℃ / -10.0 ~ 95.0%RH |
Input sensor | CNT-HAC4SN NTC 10K |
Display Accuracy | ±1%rdg ±1digit |
Output | 7 Relay Outputs (1)Ventilation Fan Control: Built-in 4-stage control relays (2)Cooling & Heating Control: 1 relay (3)Spray / Mist Control: 1 relay (4)Alarm Output: 1 relay |
Programming | ALAM / HEAT / VENT / COOL / UP KEP / DOWN KEP |
Control Method | ON / OFF |
Power Supply | 100 ~ 240 VAC, 50/60Hz 3VA |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC |
|

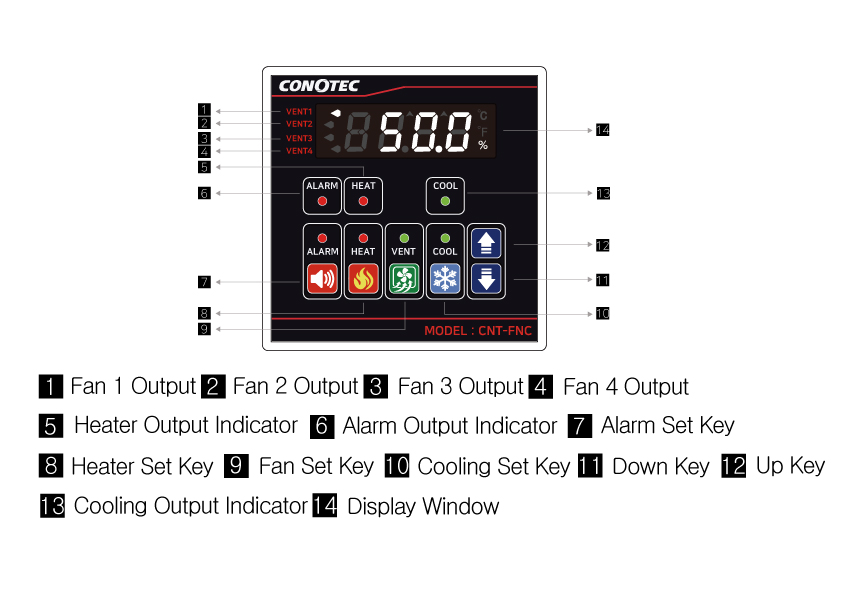

Part name

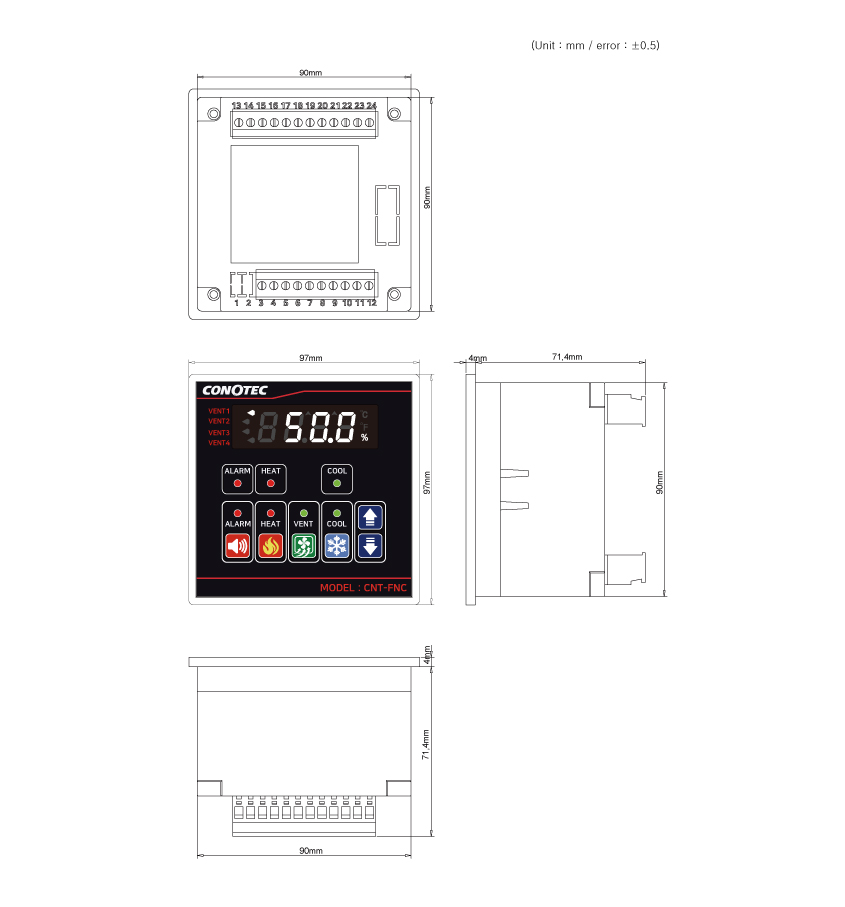

Size & Dimension

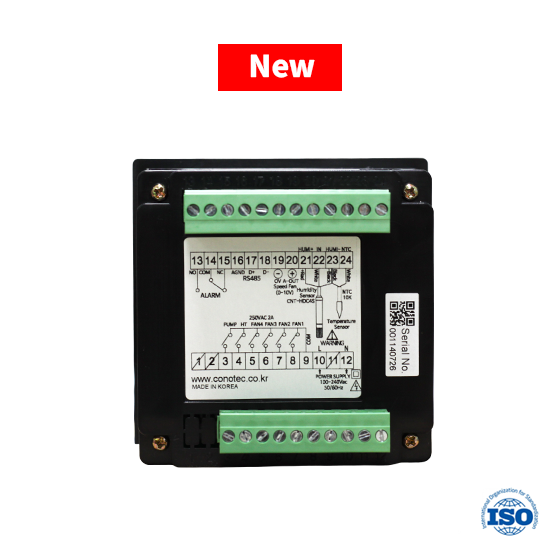

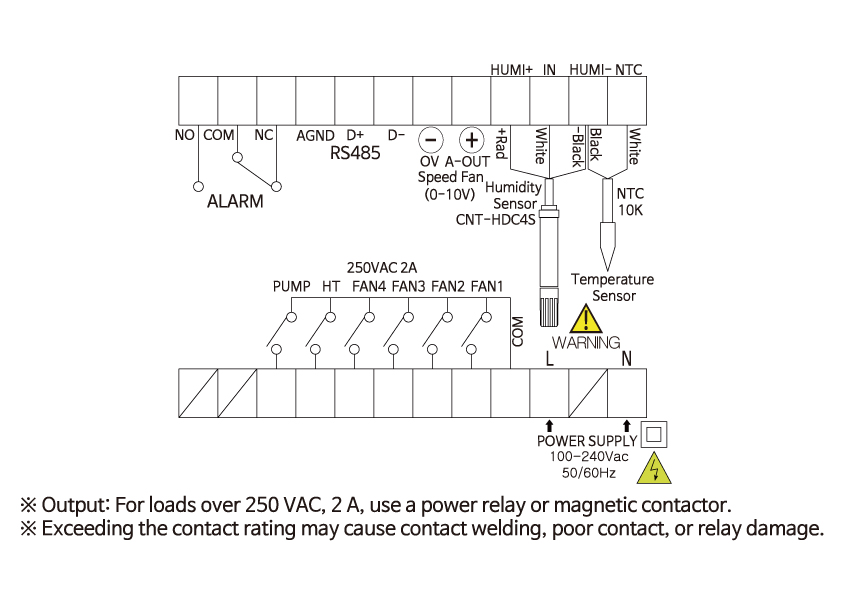

Connection

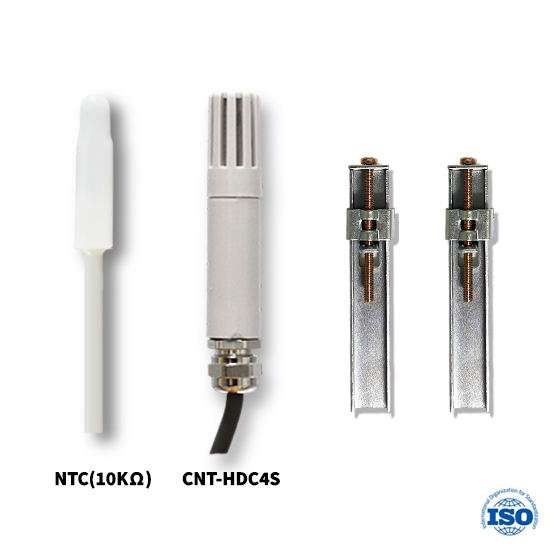

Related sensors and products
with CONOTEC
