CONOTEC

 Size

 77(W) x 35(H) x 78(D)

 Operating Range

 -55.0 ~ 99.9℃

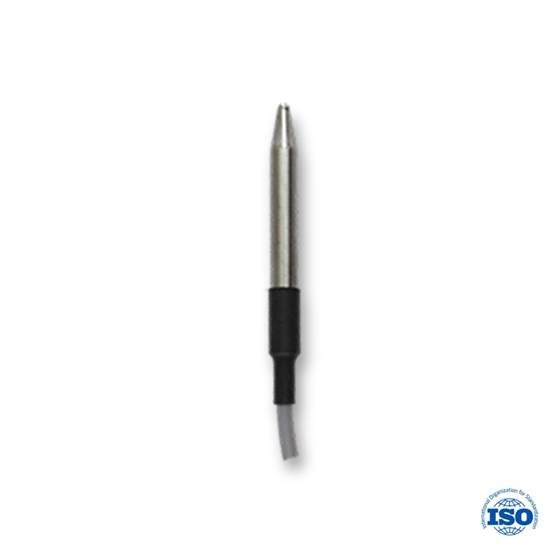

 Input sensor

 NTC(10KΩ) 3M

 Display Accuracy

 ±1%rdg ±1digit

 Output

 4 relay (1c 4a 250VAC 2A)

 Programming

 Set / Up / Down Key

 Control Method

 ON / OFF

 Power Supply

 230VAC 50/60Hz

 Power Consumption

 ≤ 5VA

 Ambient Temp/Humi

 0 ~ 55℃ (32~131℉)

 35 ~ 80% RH

 Function

 Temperature Control / RS-485 communication

 Gross Weight 1PC

 284g
