FOX-1CH (Discontinued)
· FOX-1CH
Features
> Cooling / Heating
> Restrictive function for the settign range
of the upper or lowest limit
> 1CX-8A relay
▶ Alternative Model: DSFOX-TC10 (Click)
Product Data
Installation Cases
Heating＆cooling

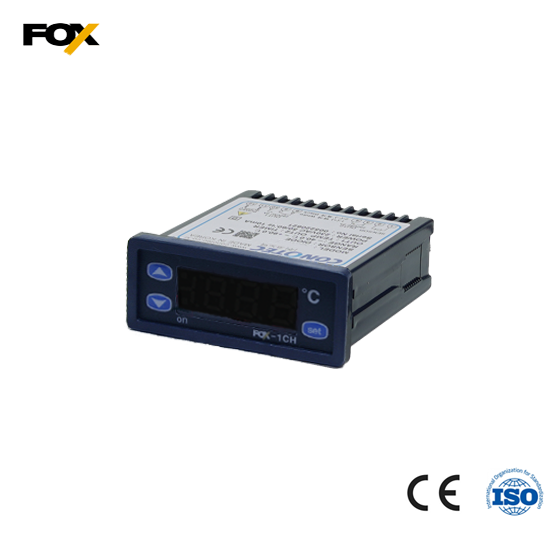

FOX-1CH (Temp. Controller)
-Country of Use: UAE-Usage Environment: Donut Machine-Product Link: https://www.conotec.co.kr/en/pages/product_detail.php?pid=20&it_id=1647591307
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | -50 ~ 400℃ |
Input sensor | CA(K) |
Display Accuracy | ±1%rdg ±1digit |
Output | 1 relay (1c 250VAC 2A) |
Programming | Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 100 ~ 240VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 146g |

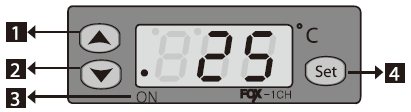

Part name

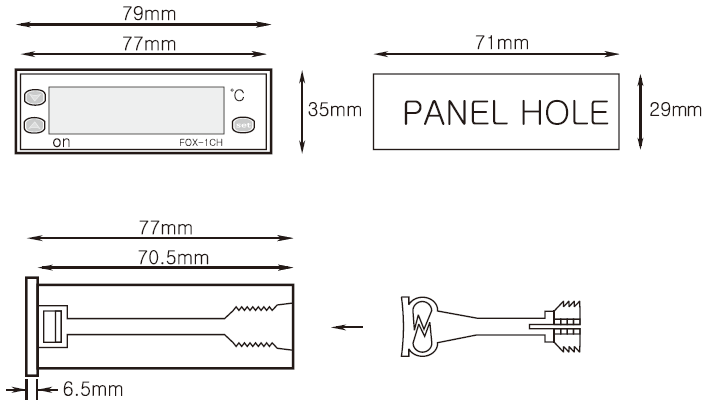

Size & Dimension

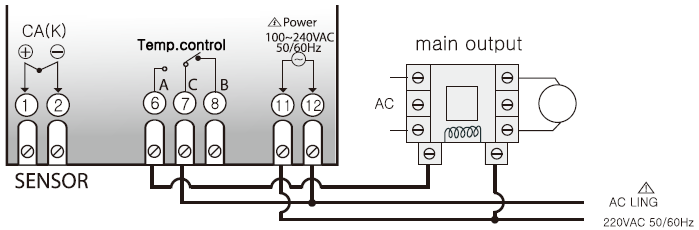

Connection
※ Output : 250VAC 2A
Please make use of the power relay or magnet surely.
