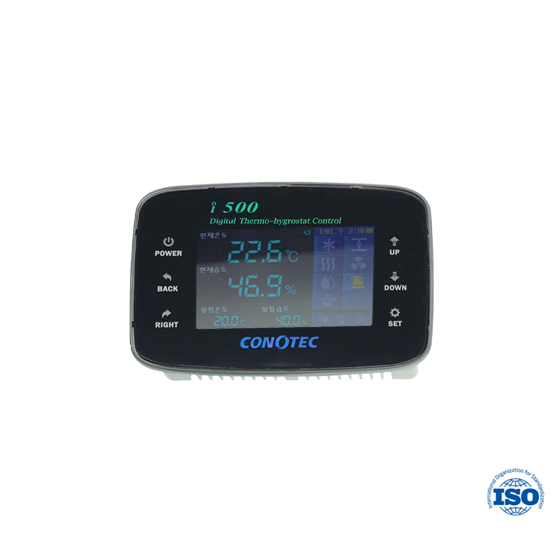

i500 THERNO-HYGROSTAT CONTROLLER

· i500 THERNO-HYGROSTAT CONTROLLER

> Heating 4 steps, Cooling 2 steps

Humidification 3 steps

Dehumidification 2 steps

> 3 types of humidification

(Step type/Electrode type/Pan type)

> Analog proprotional output optional

> Two-way operation system

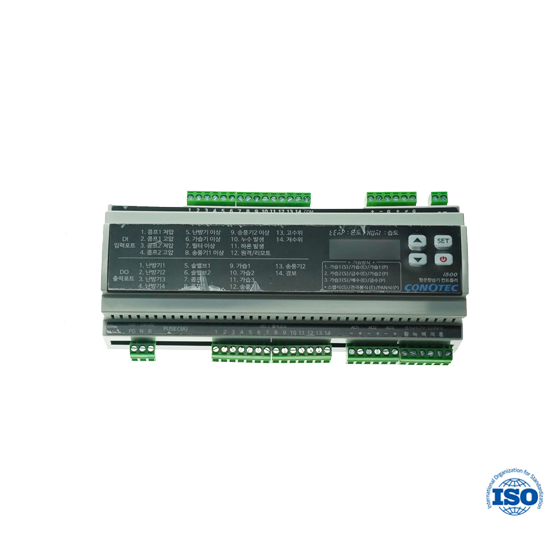

(monitor & main unit)

i500 Manual

제품 문의하기

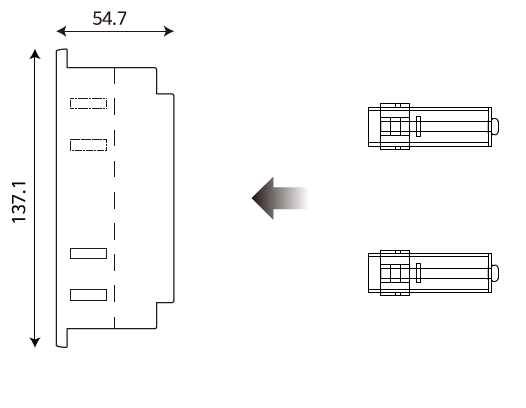

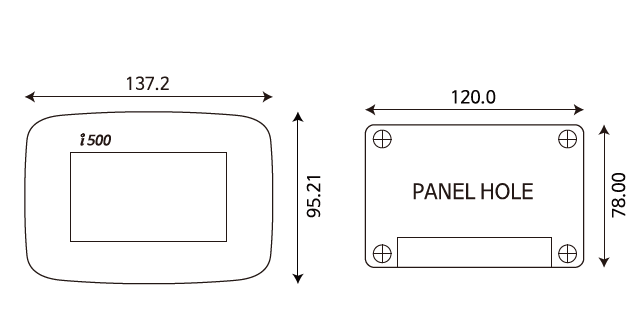

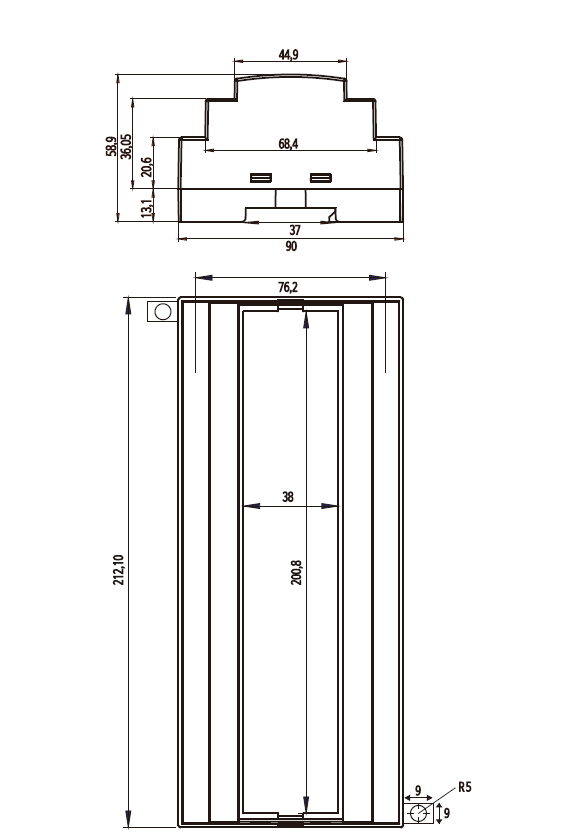

Size	(Monitor)137.21(W) x 95.21(H) x 54.7(D) (Main unit) 212.1(W) x 76.2(H) x 45.8(D)
Operating Range	(Temp)-20 ~ 70℃ (±1) (Humi) 0 ~ 100%(±3%)
Input sensor	HCPV-220NH
Display Accuracy	±1%rdg ±1digit
Output	4-20mA (3 Port)

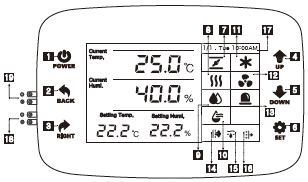

Programming	Set / Up / Down / Back Right / Power Key
Control Method	ON / OFF
Power Supply	100 ~ 240VAC 50/60Hz
Ambient Temp/Humi	0 ~ 55℃ (32~131℉) 35 ~ 80% RH
Gross Weight 1PC	900g
