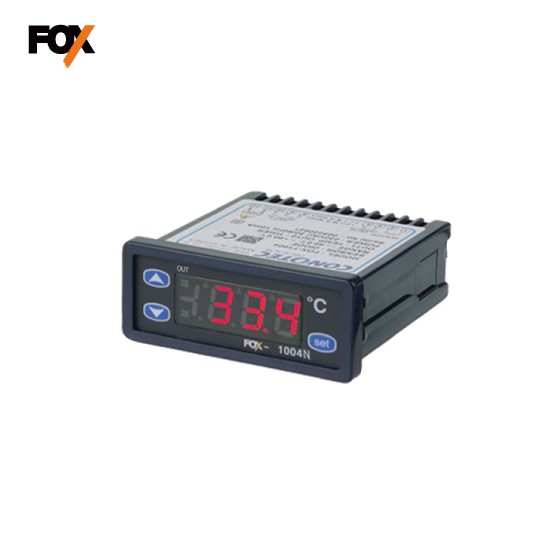

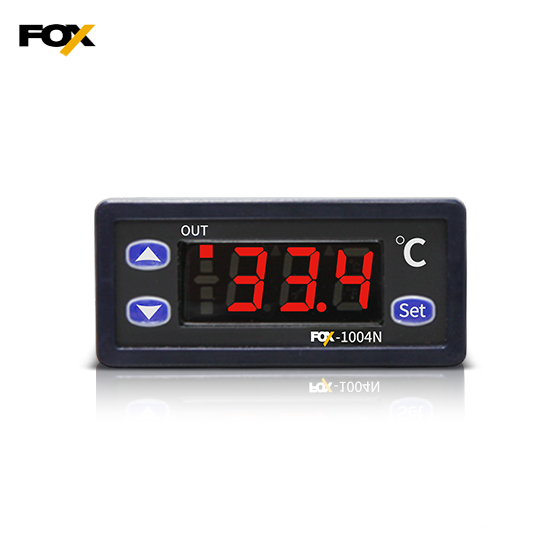

FOX-1004N
· FOX-1004N
Features
> Output delay time
> Use both Cooling & heating
> Use NTC Sensor (2m)
Product Data
Specification
Size | 77(W) x 35(H) x 78(D) |
Operating Range | -40.0 ~ 80.0℃ |
Input sensor | NTC (2M) |
Display Accuracy | ±1%rdg ±1digit |
Output | 1 relay (1c 250VAC 2A) |
Programming | Set / Up / Down Key |
Control Method | ON / OFF |
Power Supply | 220VAC 50/60Hz |
Order production | 110VAC 50/60Hz |
Ambient Temp/Humi | 0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC | 205g |

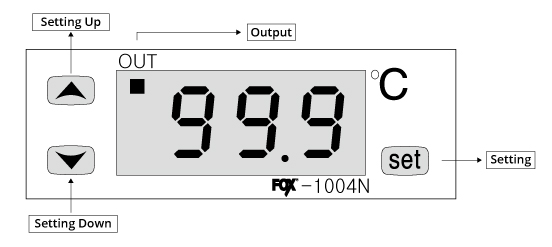

Part name

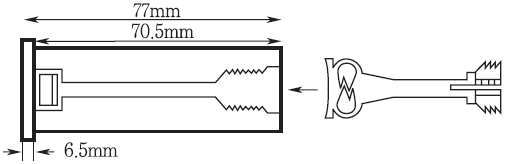

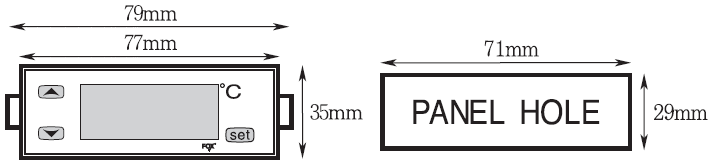

Size & Dimension

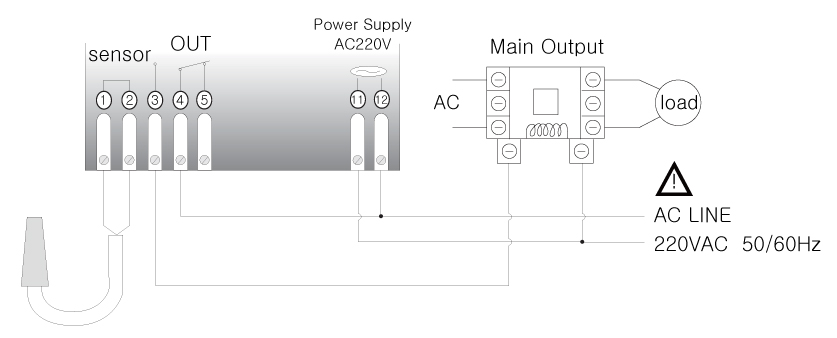

Connection
※ Output : 220VAC 50/60Hz
Please make use of the power relay or magnet surely.
