Heating&cooling
Features
> Temp.control output
> Humi/temp display
> High temp sensor usable (85℃)
> RS485 Communication
Product Data

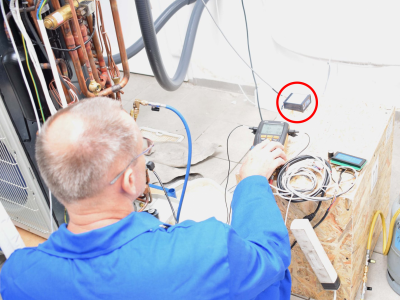

Installation Cases
Specification
Operating Range |
0 ~ 100.0% RH |

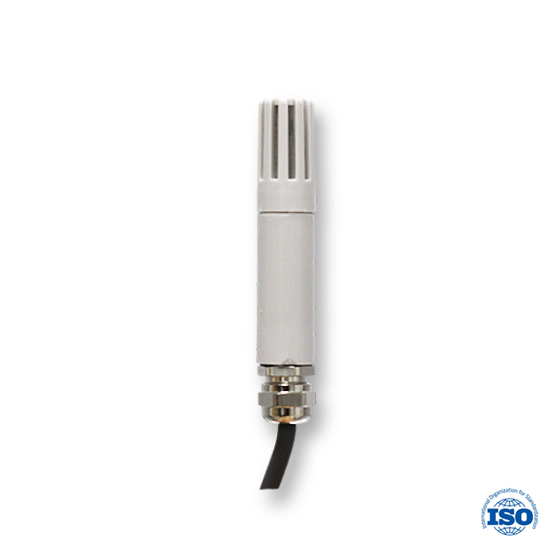

Input sensor |
DS-SH-series |
Display Accuracy |
±2%rdg ±1digit |
Output |
2 relay (2a 250VAC 2A) |
Programming |
Set / Up / Down key |
Control Method |
ON / OFF |
Power Supply |
230VAC 50/60Hz |
Order production |
110VAC 50/60Hz 12V AC/DC ±10% |
Ambient Temp/Humi |
0 ~ 55℃ (32~131℉) 35 ~ 80% RH |
Gross Weight 1PC |
400g |

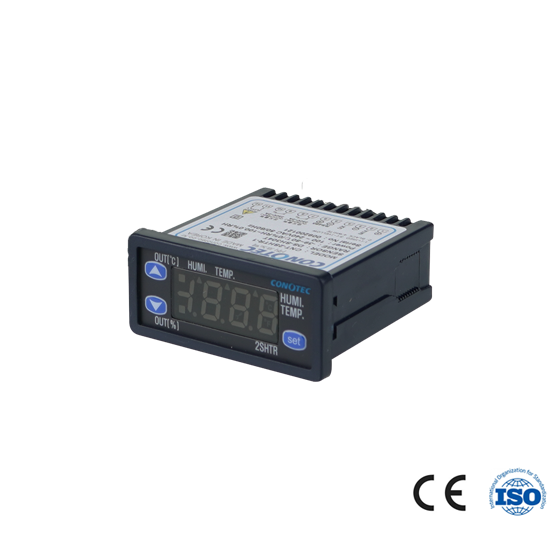

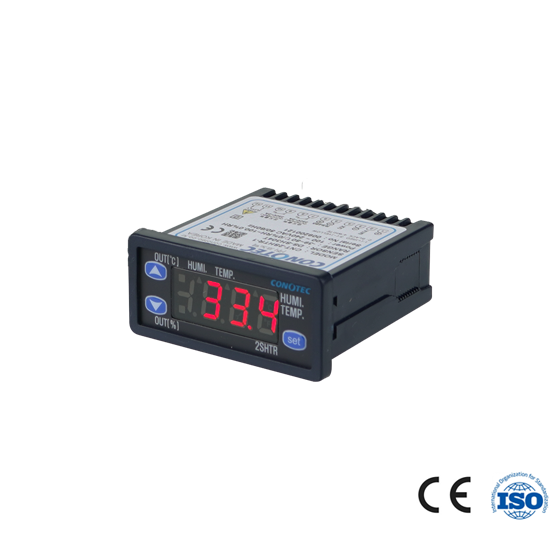

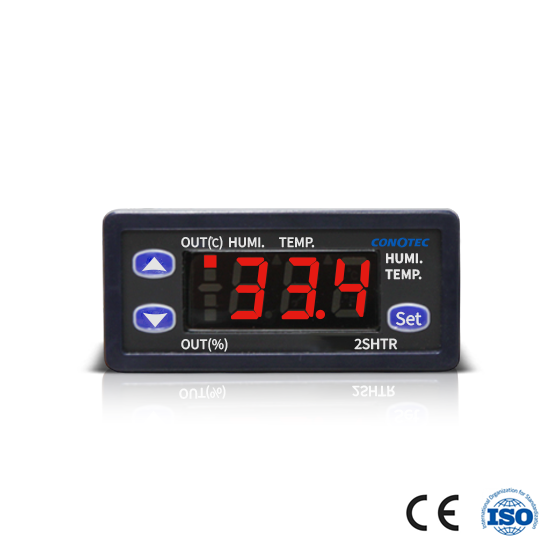

Part name
※ Humidity display and control + temperature display for the currency status display,
there're 3 kinds of mode, as a switch of <Up(increase)/DN(decrease)>,
you can change the display like "Humidity/Humi&Temp/Temp".

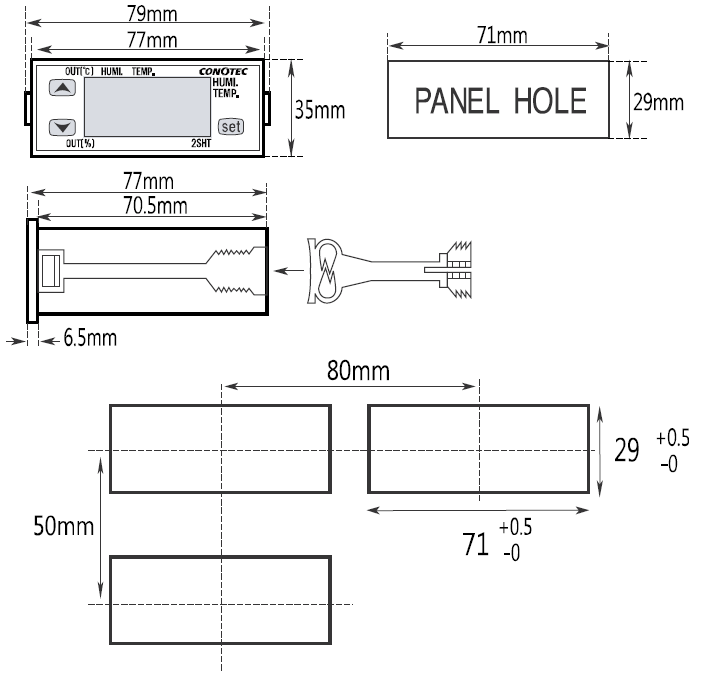

Size & Dimension

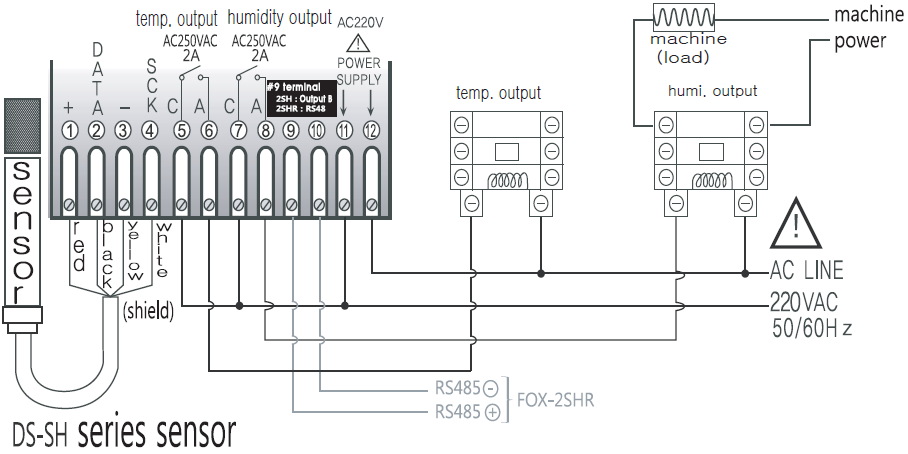

Connection
※ Please make use of the shield wire when lengthening of the sensor wire,
and in case of using in the high temperature range of 65℃ ~ 80℃,
surely use the high temperature using wire (Teflon wiring).
※ Please make the operating machine be driven with using the power relay or magnet surely
because its output specification of inside relay is less than 250VAC 2A.
