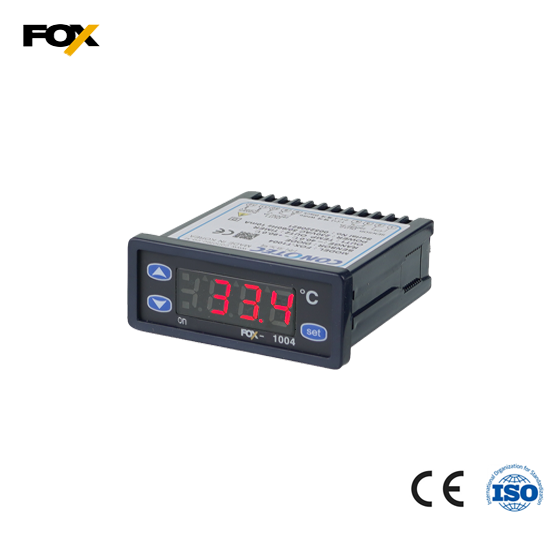

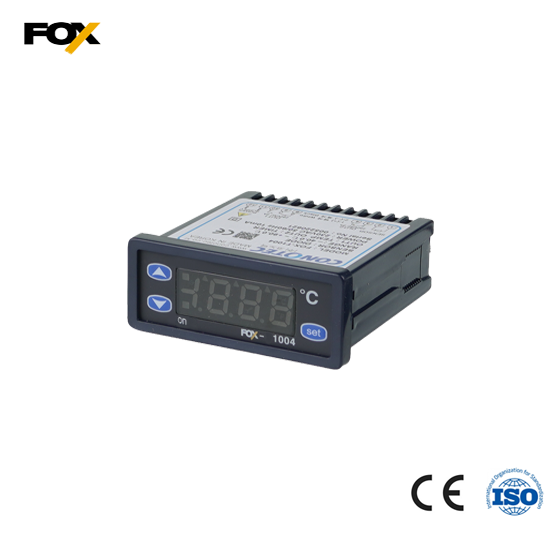

FOX-1004(discontinuance)
· A replacement product : DSFOX-X10

Features

> Output delay time

> Use both Cooling & heating


※Only AC 120V is TUV certified


▶ DSFOX-1004N (Alternative Model)(Click)

▶ DSFOX-X10 (Alternative Model)(Click)

Product Data

FOX-1004 Manual
Specification



 Size

 77(W) x 35(H) x 78(D)

 Operating Range

 -40.0 ~ 90.0℃

 Input sensor

 Diode (3M)

 Display Accuracy

 ±1%rdg ±1digit

 Output

 1 relay (1c 250VAC 2A)

 Programming

 Set / Up / Down Key

 Control Method

 ON / OFF

 Power Supply

 230VAC 50/60Hz

 Order production

 110VAC 50/60Hz

 12V or 24V AC/DC( ±10% )

 Ambient Temp/Humi

 0 ~ 55℃ (32~131℉)

 35 ~ 80% RH

 Gross Weight 1PC

 254g

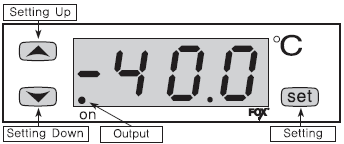

Part name

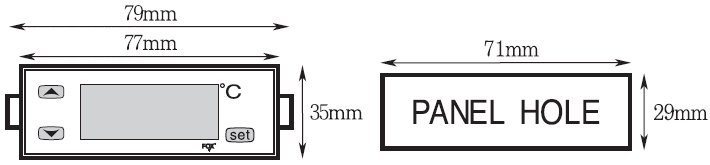

Size & Dimension

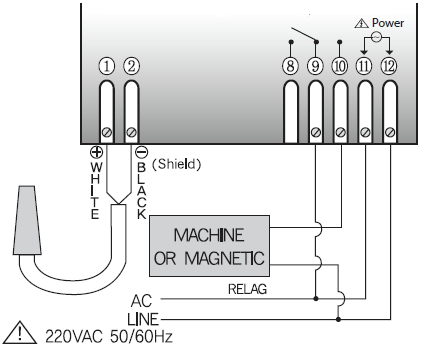

Connection







※ Output : 220VAC 2A

                    Please make use of the power relay or magnet surely.
